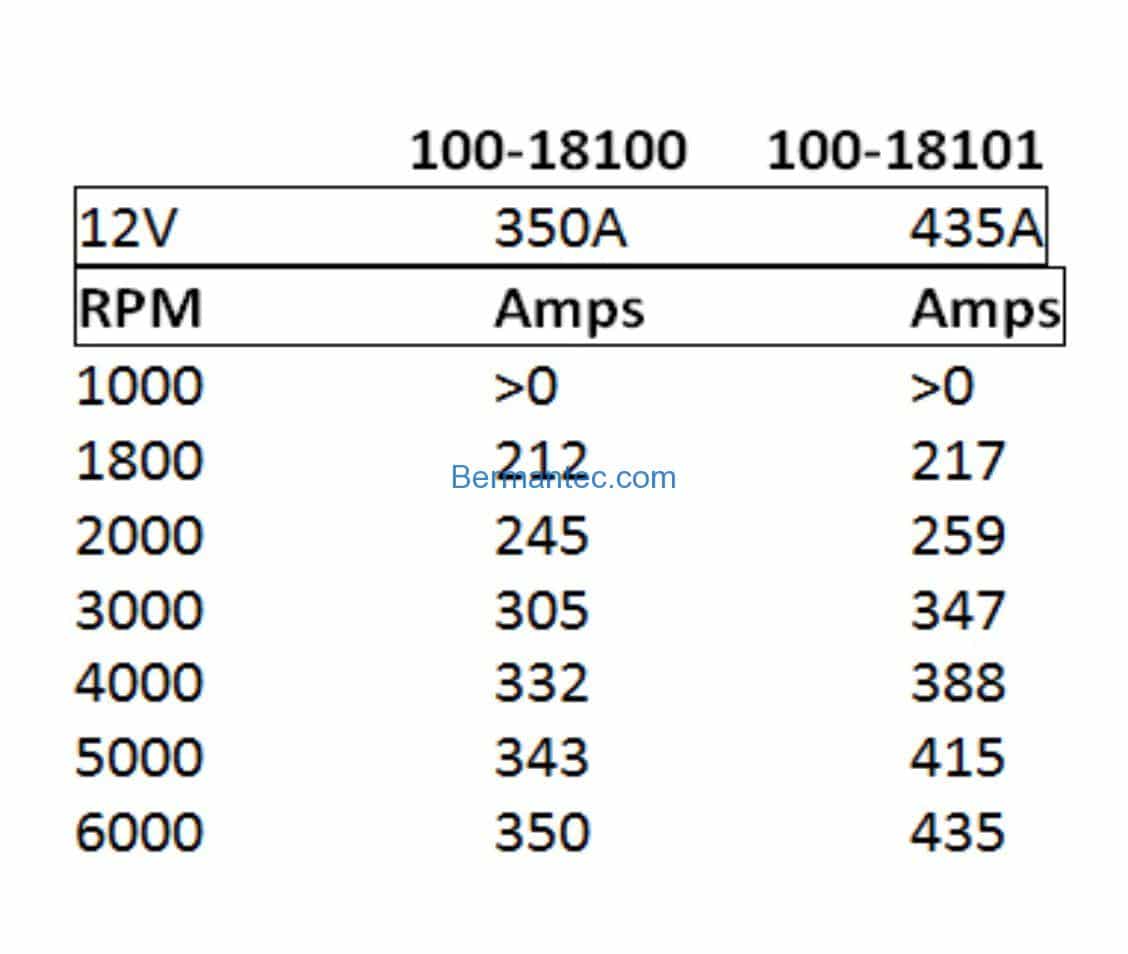

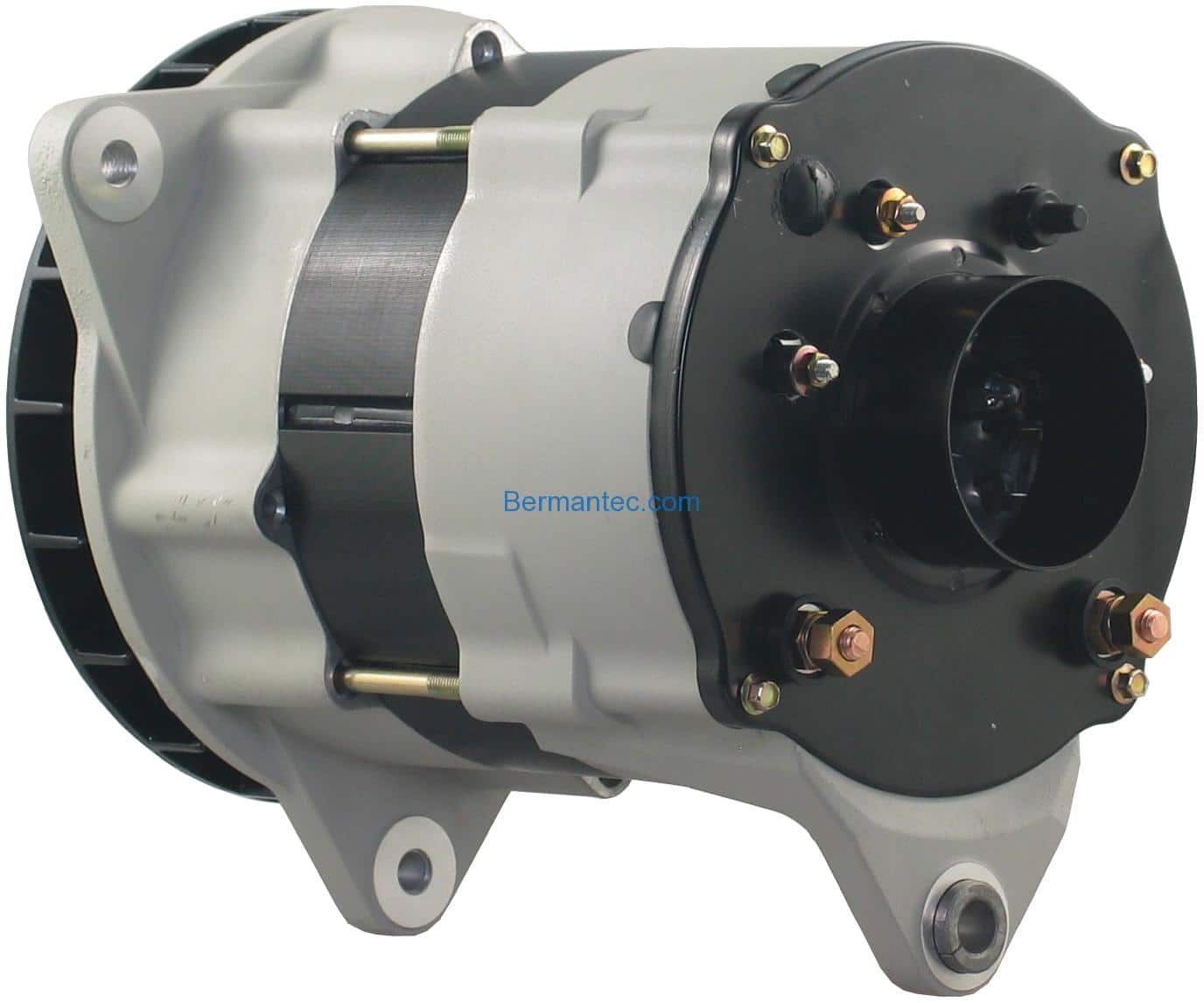

Part number:  100-18100   350 A  built-in regulator,  negative ground

Part number:  100-18101   435 A  built-in regulator,  negative ground

Technical details:

  • High output at low r.p.m.
  • 1 ball bearing at drive end side (25.0 x 62.0 x 25.4 mm)
  • Negative ground
  • Brushless

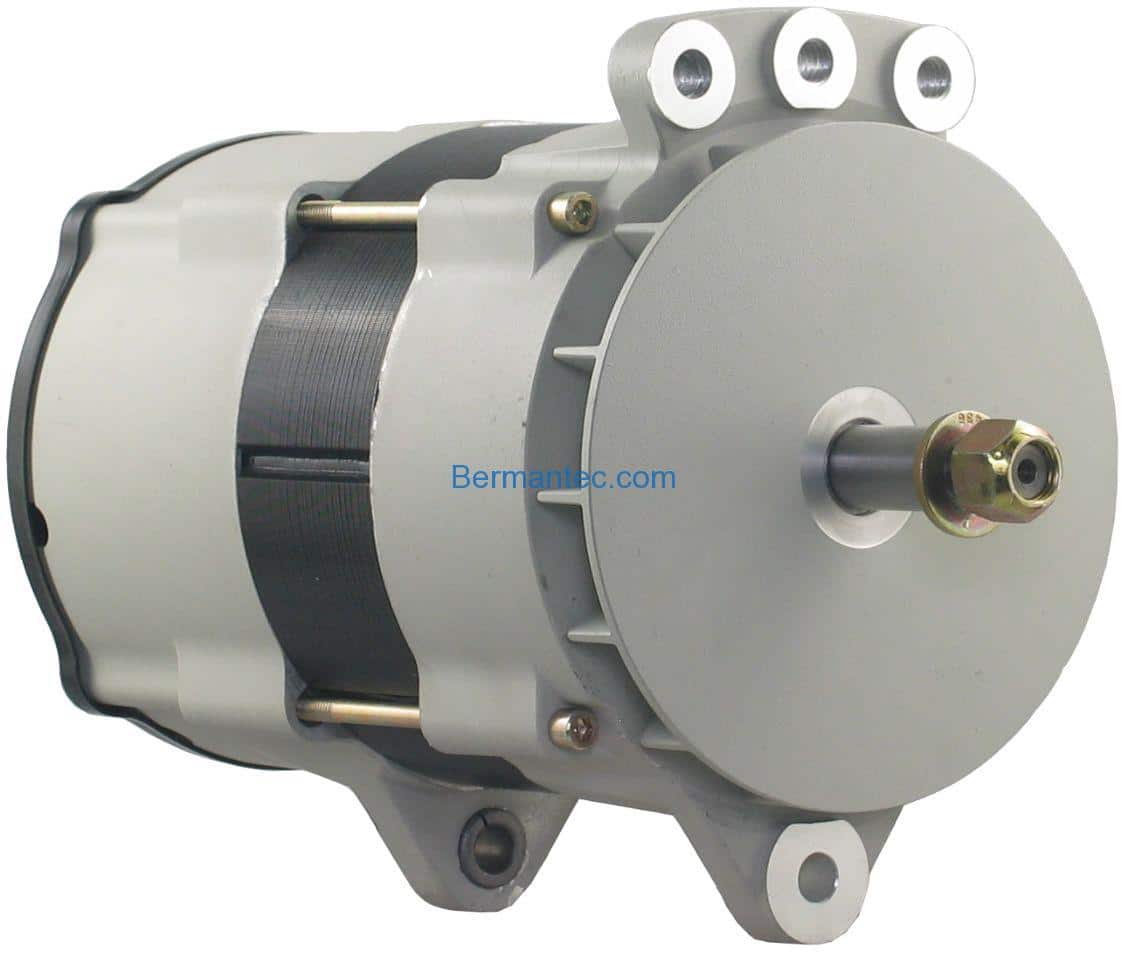

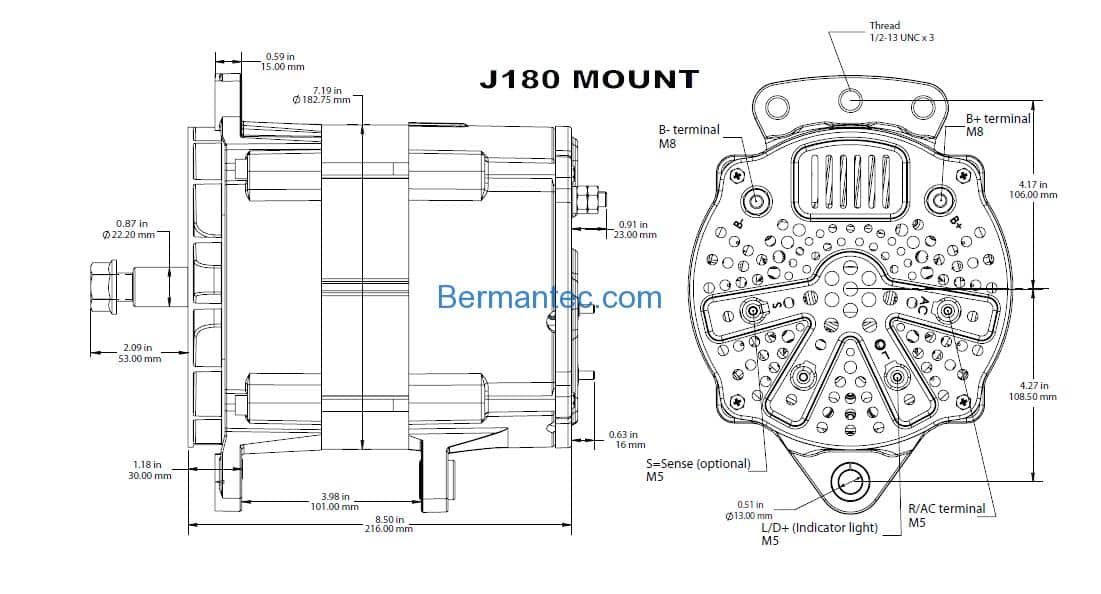

  • Standard U.S. mounting, SAE J-180 (4″ dual foot mount)
  • 7/8″ diam. rotorshaft
  • S-connection
  • R-connection for rev counter
  • Built-in regulator
  • Ambient temperature -40°C / +95°C
  • Max continuous rpm: 8000
  • Weight: 21 kgs

Applications:

  • Fire trucks
  • Industrial
  • Marine
  • Busses and coaches

All alternators can be supplied with an optional air intake cover

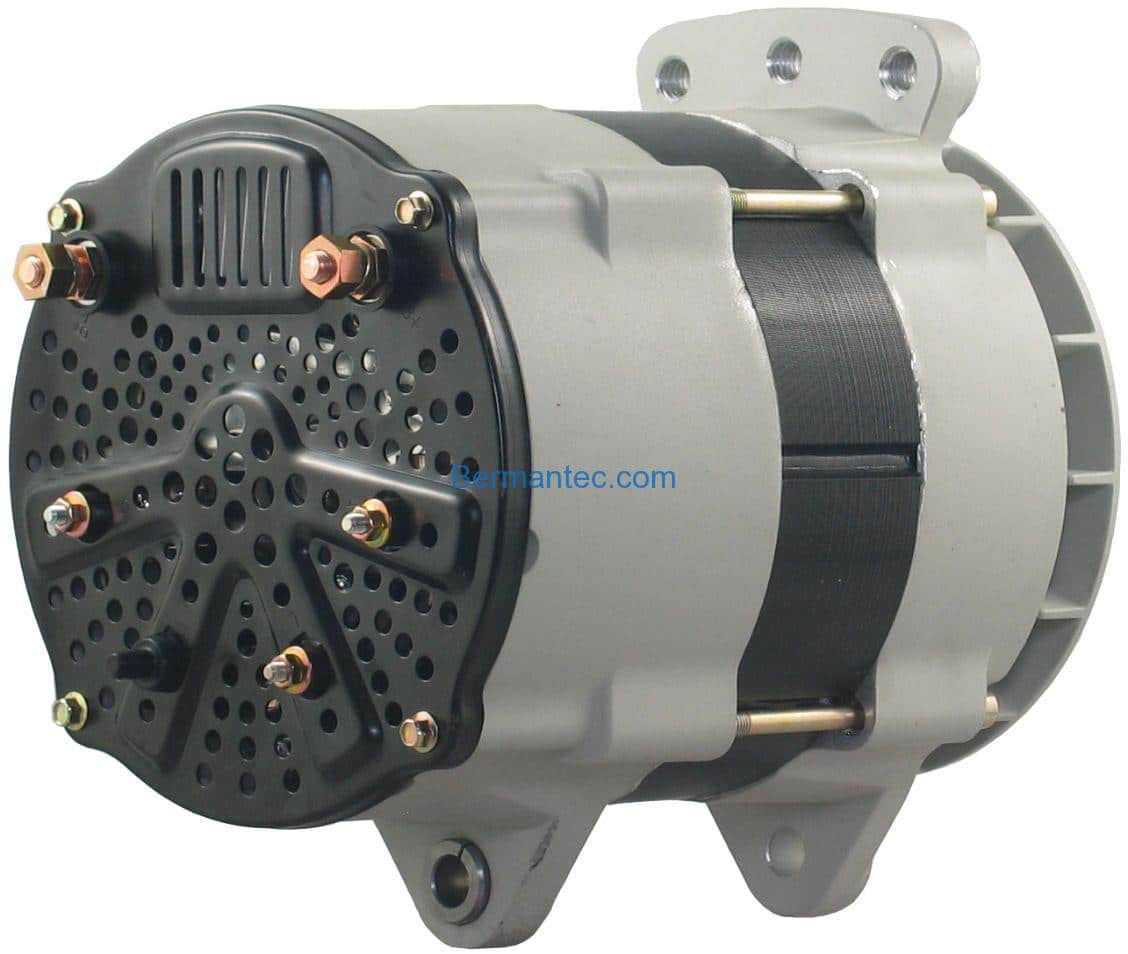

Part number:  100-18110   350 A  built-in regulator,  negative ground

Part number:  100-18111   435 A  built-in regulator,  negative ground

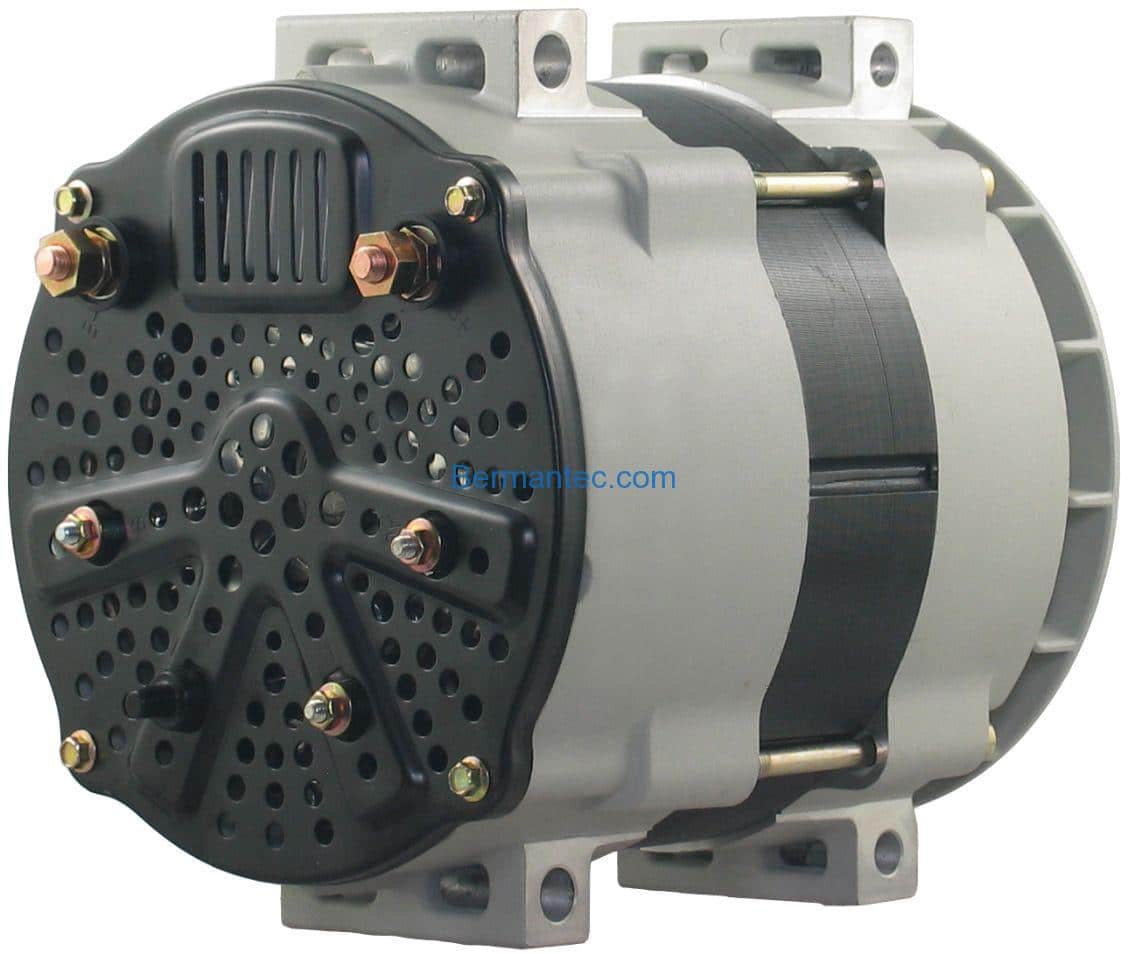

Technical details:

  • High output at low r.p.m.
  • 1 ball bearing at drive end side (25.0 x 62.0 x 25.4 mm)
  • Negative ground
  • Brushless

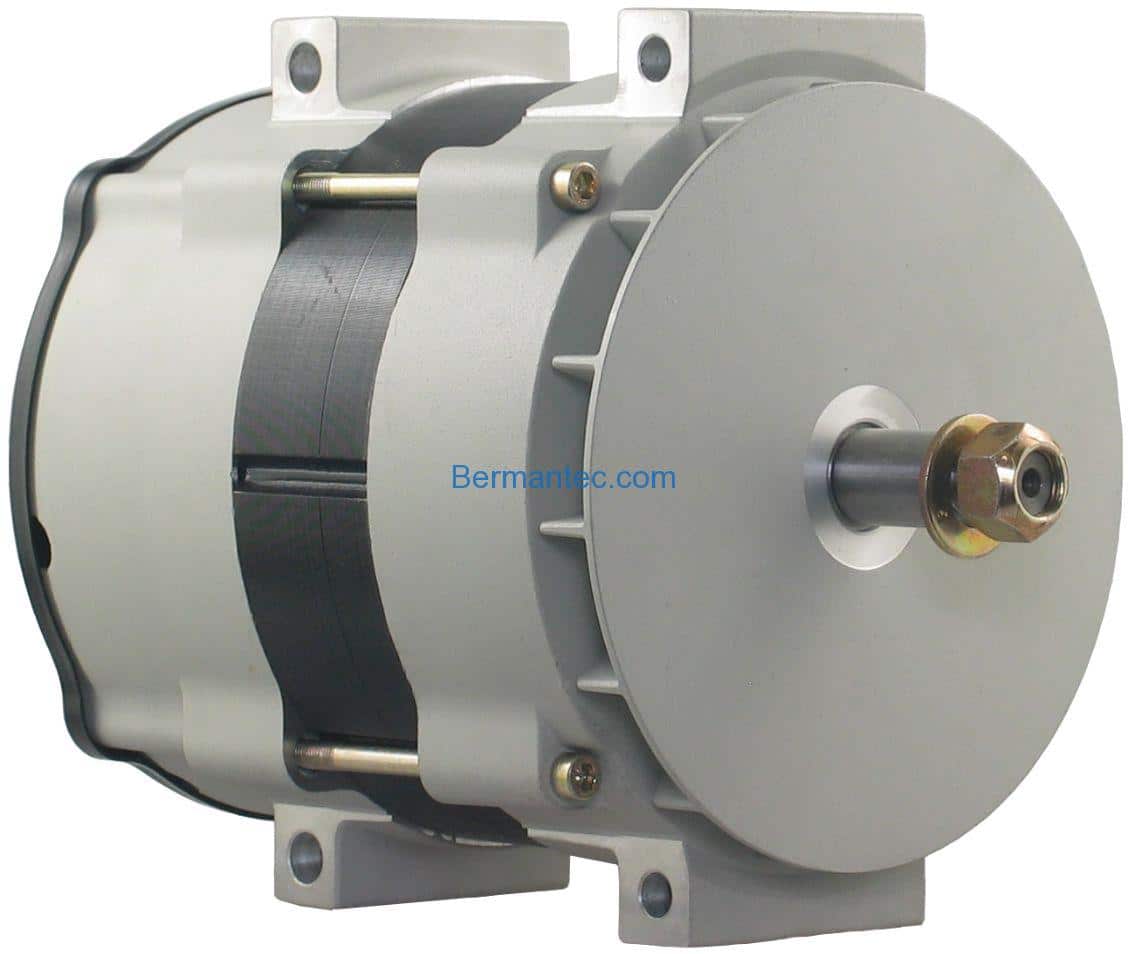

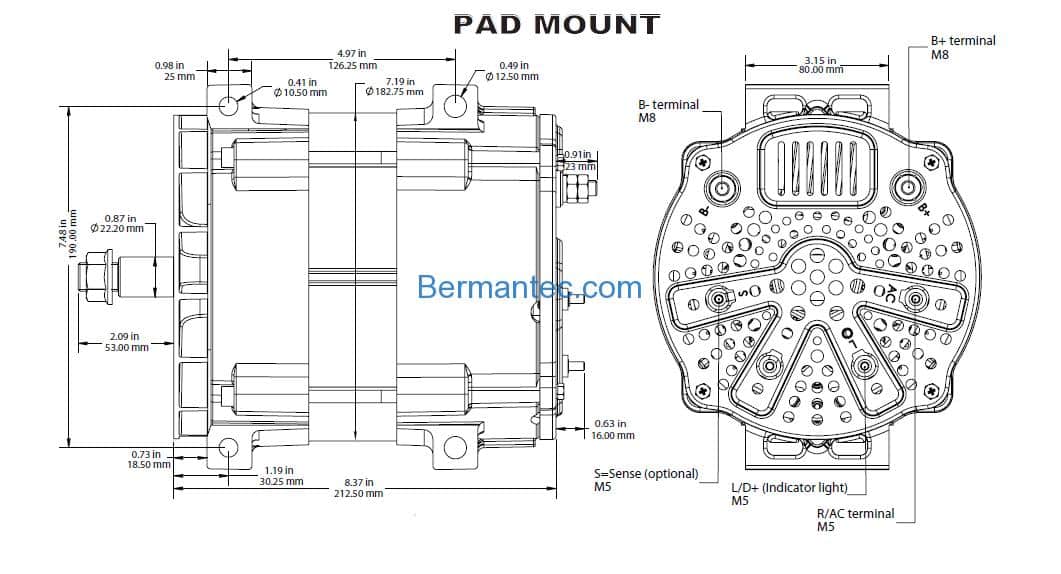

  • PAD mount
  • 7/8″ diam. rotorshaft
  • S-connection
  • R-connection for rev counter
  • Internal regulator (External voltage regulator optinal)
  • Ambient temperature -40°C / +95°C
  • Max continuous rpm: 8000
  • Weight: 21 kgs

Application:

  • Fire trucks
  • Industrial
  • Marine
  • Buses and coaches

All alternators can be supplied with an optional air intake cover

Part number 100-18202 = 24 Volt / 250 A  built-in regulator,  with hair-pin stator

Part number 100-18204 = 24 Volt / 200 A  built-in regulator,  with hair-pin stator

Part number 100-18203 = 24 Volt / 250 A  external regulator,  with hair-pin stator

Part number 100-18205 = 24 Volt / 200 A  external regulator,  with hair-pin stator

Technical details:

  • High output at low r.p.m.
  • 1 ball bearing at drive end side  (25.0 x 62.0 x 25.4 mm)
  • Insulated
  • Brushless
  • Standard U.S. mounting, SAE J-180 (4″ dual foot mount)
  • 7/8″ diam. rotorshaft
  • S-connection
  • R-connection for rev counter
  • D+ terminal (only for built-in regulators)
  • Built-in or external regulator
  • Ambient temperature -40°C / +95°C
  • Max continuous rpm: 8000
  • Weight: 21 kgs

Recommended for:

  • Firetrucks
  • Industrial
  • Marine
  • Busses and coaches
  • Touring cars

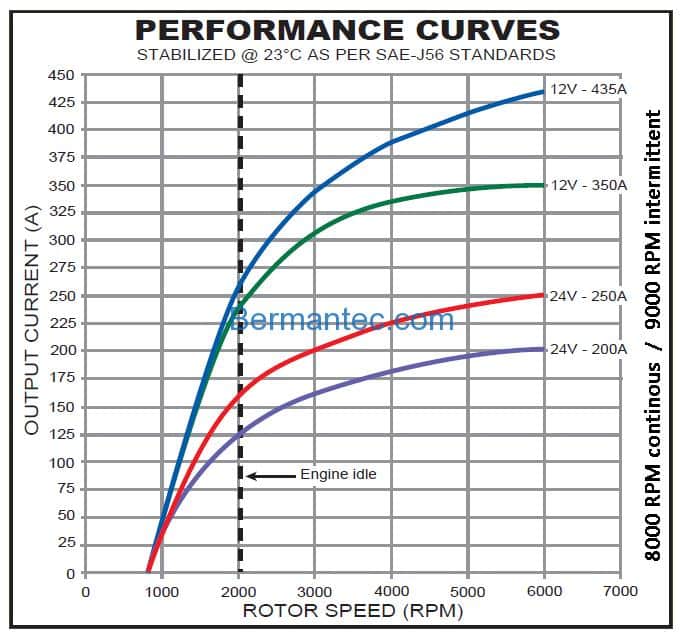

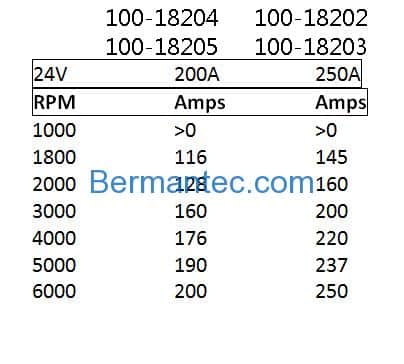

24 Volt – 250 A
Rpm/Amps: 1000 rpm – > 0 A | 2000 rpm – 160 A | 3000 rpm – 200 A | 4000 rpm – 220 A | 5000 rpm – 237 A
24 Volt – 200 A
Rpm/Amps: 1000 rpm – > 0 A | 2000 rpm – 128 A | 3000 rpm – 160 A | 4000 rpm – 176 A | 5000 rpm – 190 A

All alternators can be supplied with an optional air intake cover

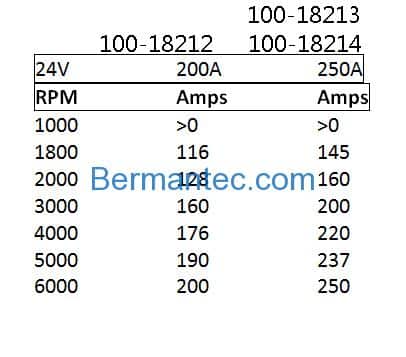

Part number 100-18212 = 24 Volt / 200 A  built-in regulator,  with hair-pin stator

Part number 100-18213 = 24 Volt / 250 A  built-in regulator,  with hair-pin stator

Part number 100-18214 = 24 Volt / 250 A  external regulator,  with hair-pin stator

Technical details:

  • High output at low r.p.m.
  • 1 ball bearing at drive end side (25.0 x 62.0 x 25.4 mm)
  • Insulated
  • Brushless
  • PAD mount
  • 7/8″ diam. rotorshaft
  • S-connection
  • R-connection for rev counter
  • Internal regulator (External voltage regulator optional)
  • Ambient temperature -40°C / +95°C
  • Max continuous rpm: 8000
  • Weight: 21 kgs

Application:

  • buses and coaches

All alternators can be supplied with an optional air intake cover

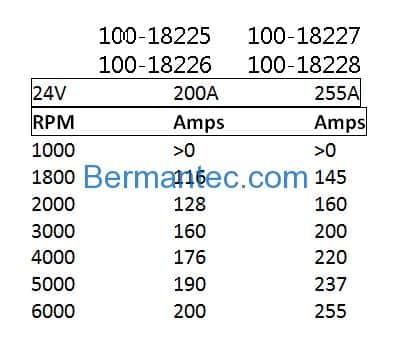

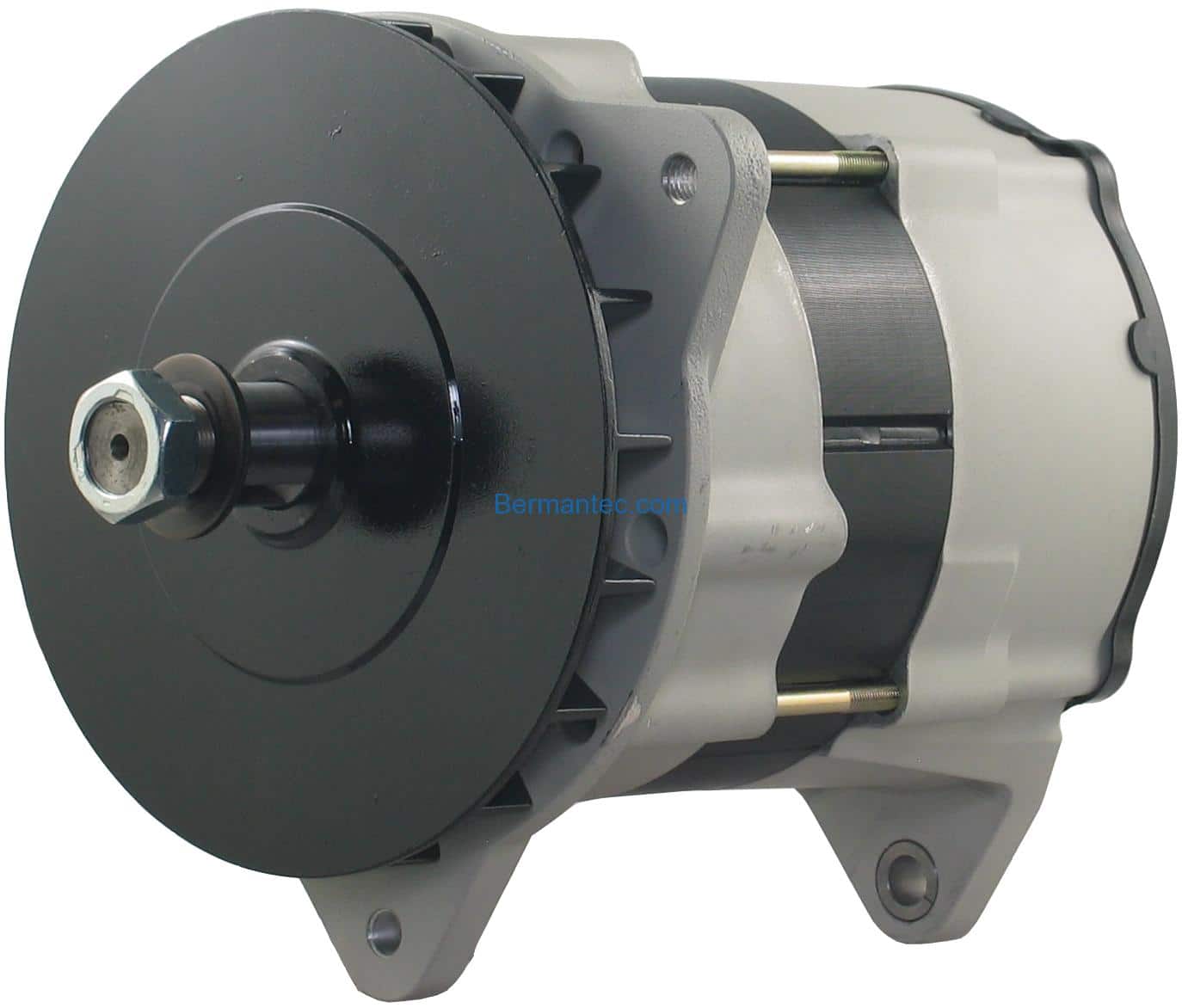

Mounting ear right:

Part number 100-18225 = 24 Volt / 200 A  built-in regulator,  with hair-pin stator

Part number 100-18227 = 24 Volt / 265 A  built-in regulator,  with hair-pin stator

Mounting ear left:

Part number 100-18226 = 24 Volt / 200 A  built-in regulator,  with hair-pin stator

Part number 100-18228 = 24 Volt / 265 A  built-in regulator,  with hair-pin stator

Technical details:

  • High output at low r.p.m.
  • 2 ball bearings at drive end side (2 pcs. – 25.0 x 62.0 x 25.4 mm)
  • Insulated
  • Brushless

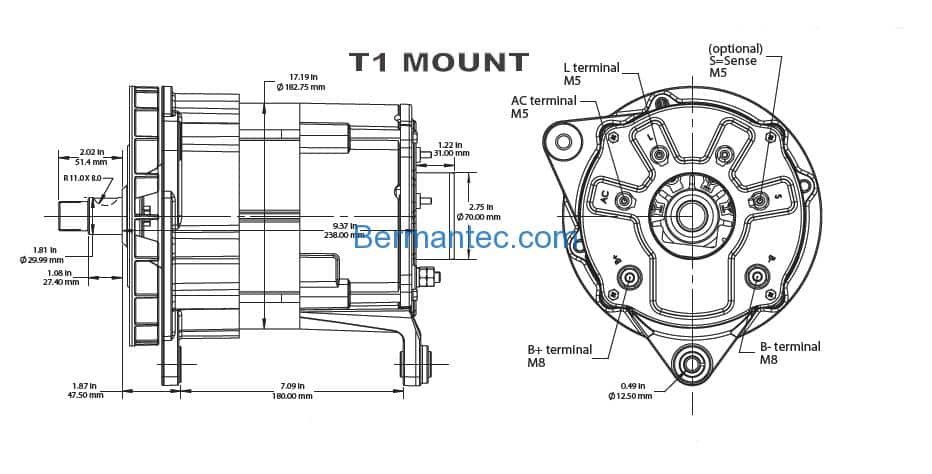

  • T1 mount
  • 30mm diam. rotorshaft
  • S-connection
  • R-connection for rev counter
  • Internal regulator (External voltage regulator optional)
  • Ambient temperature -40°C / +95°C
  • Max continuous rpm: 8000
  • Weight: 23 kgs

Application:

  • buses and coaches

All alternators can be supplied with an optional air intake cover
