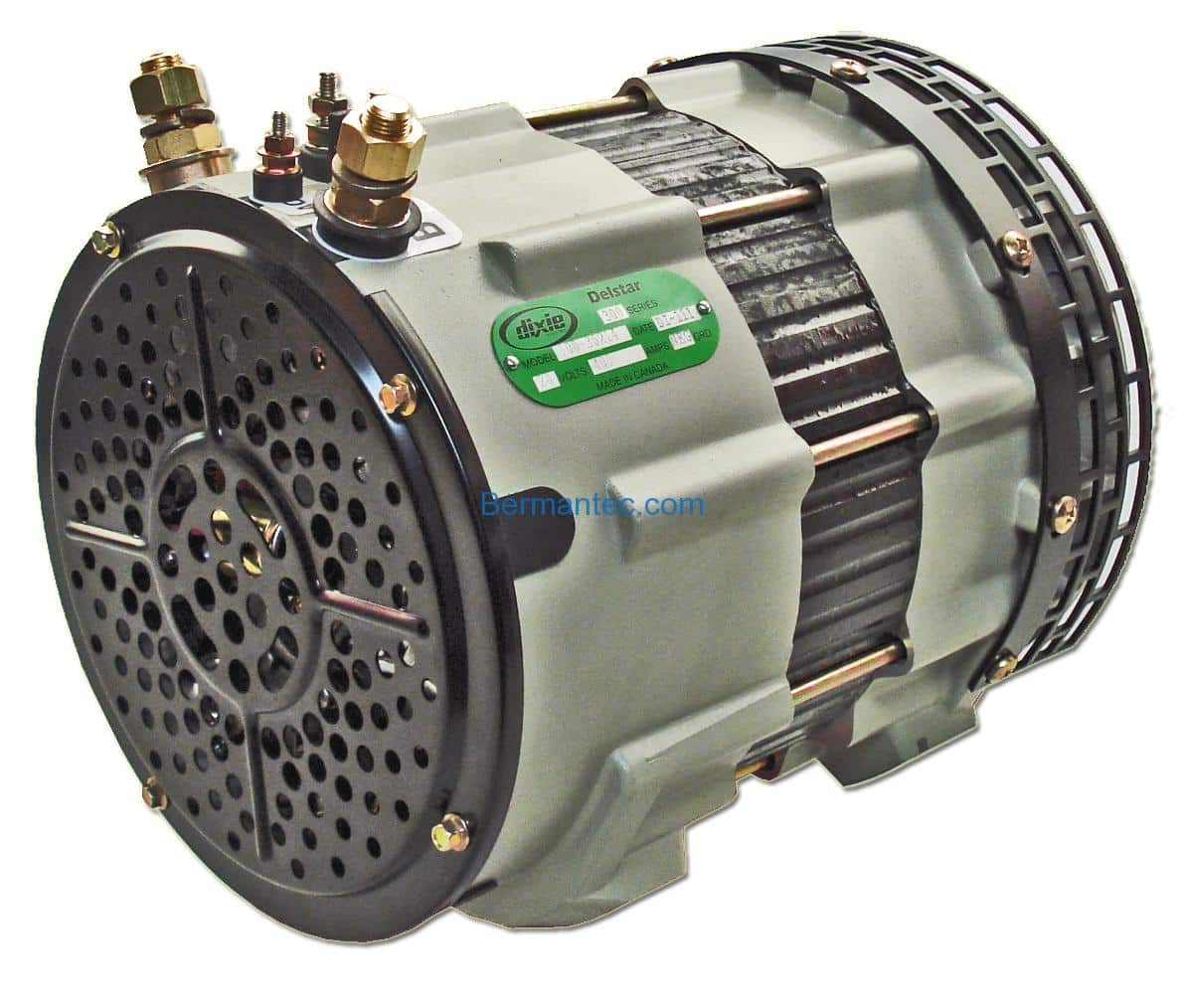

Part number 100-30204

Technical details:

  • High output at low r.p.m.
  • 2 ball bearings at drive end side (2 pcs. 80.0 x 40.0 x 18.0 mm)
  • Insulated
  • Brushless
  • Special saddle mounting
  • Rotorshaft with straight splines
  • S-connection
  • R-connection for rev counter
  • Optional external Delco 50DN, original regulator: 3501-5025
  • Optional airduct
  • Ambient temperature -40°C / +105°C
  • Max continuous rpm: 8000
  • Weight: 35 kgs (77 lbs)

Applications:

  • Fire trucks
  • Industrial
  • Marine
  • Agriculture
  • Buses and coaches

All alternators can be supplied with an optional air intake cover

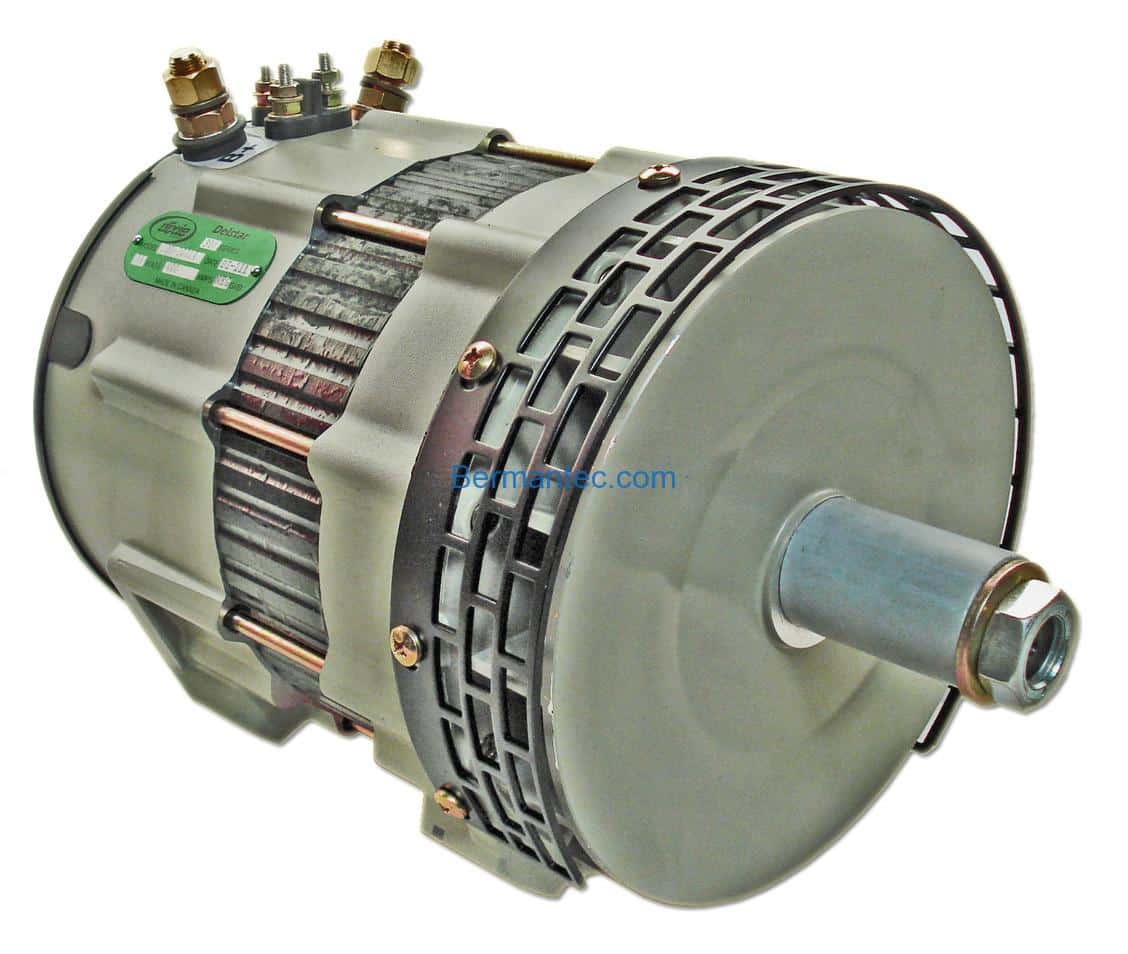

Part number 100-30205

Technical details:

  • High output at low r.p.m.
  • 2 ball bearings at drive end side  (2 pcs. 80.0 x 40.0 x 18.0 mm)
  • Insulated
  • Brushless
  • Special saddle mounting
  • Rotorshaft with straight splines
  • S-connection
  • R-connection for rev counter
  • Optional external Delco 50DN, original regulator: 3501-5025
  • Optional airduct
  • Ambient temperature -40°C / +105°C
  • Max continuous rpm: 8000
  • Weight: 35 kgs (77 lbs)

Applications:

  • Fire trucks
  • Industrial
  • Marine
  • Agriculture
  • Buses and coaches

All alternators can be supplied with an optional air intake cover
