Part number: 100-17101 = 12 Volt / 325A / remote regulator
Part number: 100-17102 = 12 Volt / 355A / built-in regulator
Part number: 100-17103 = 12 Volt / 250A / built-in regulator
Part number 100-17104 = 12 Volt / 350A / built-in regulator
Part number: 100-17106 = 12 Volt / 300A / built-in regulator
Part number: 100-17108 = 12 Volt / 345A / built-in regulator

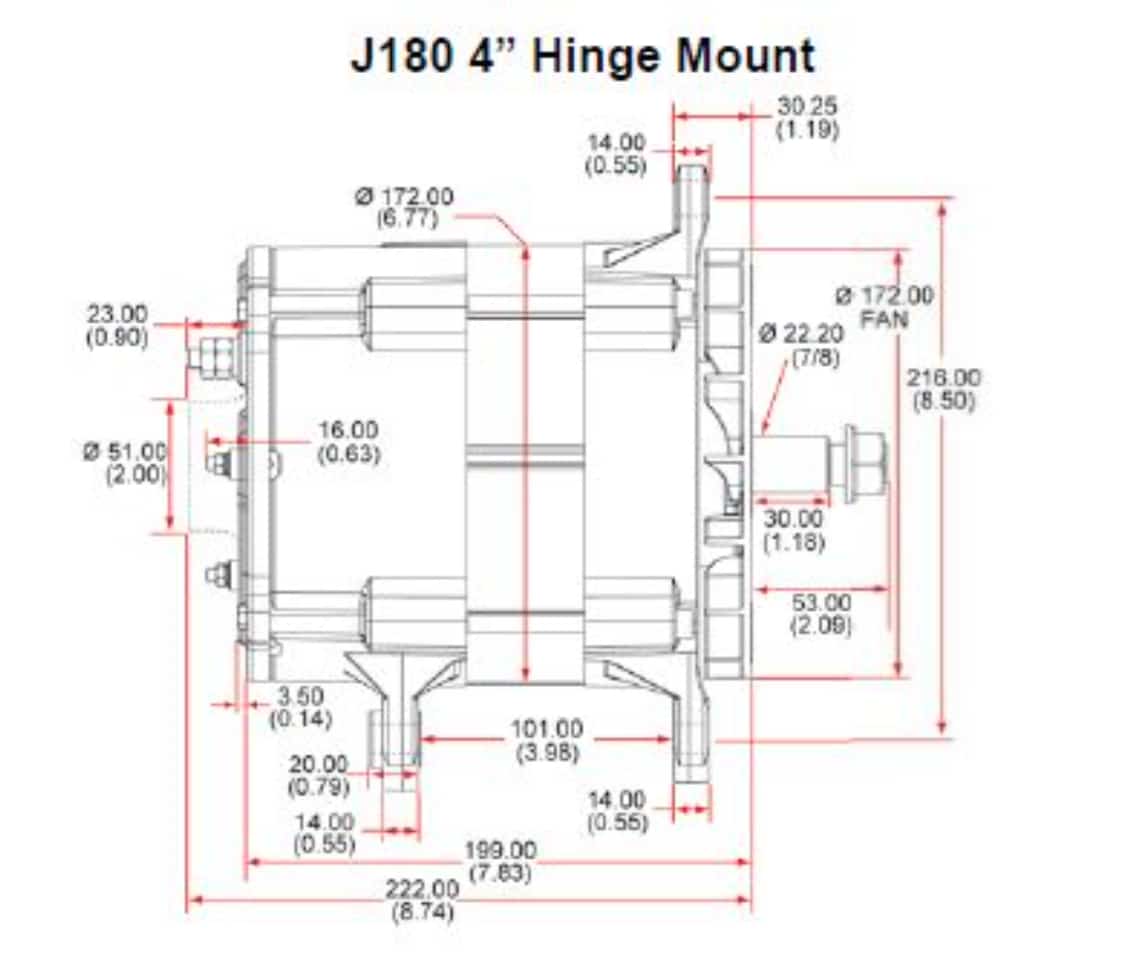

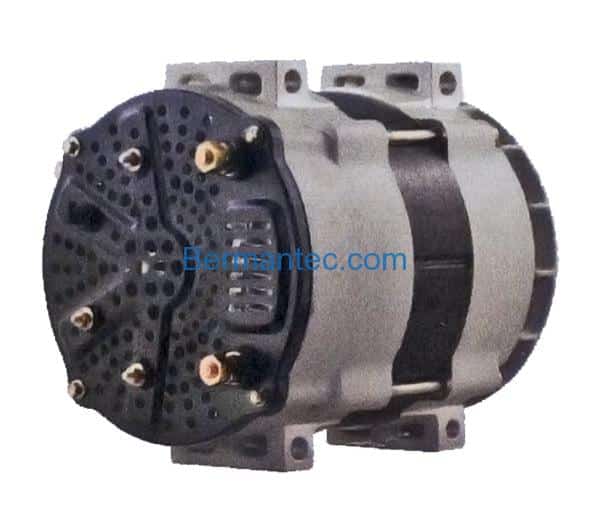

- SAE J180 4’’ Hinge
- Ground: Isolated
- Rotation: Bidirectional
- Temperature Limits: Low -40°C/-40°F, High 125°C/257°F
- RPM limits: 8000 RPM continuous, 9000RPM intermittent
- Corrosion-Resistant E-Coated
- Weight: 38 Lbs./17.4 KG
- Self-Excited
- Indicator Light
- Remote Sense
Applications: School & Shuttle buses, Emergency Vehicles, Agricultural & Industrial, Marine & Mining, Utility Vehicles, Construction
Part number: 100-17212 = 12 Volt / 350 A / built-in regulator
Part number: 100-17113 = 12 Volt / 250A / built-in regulator

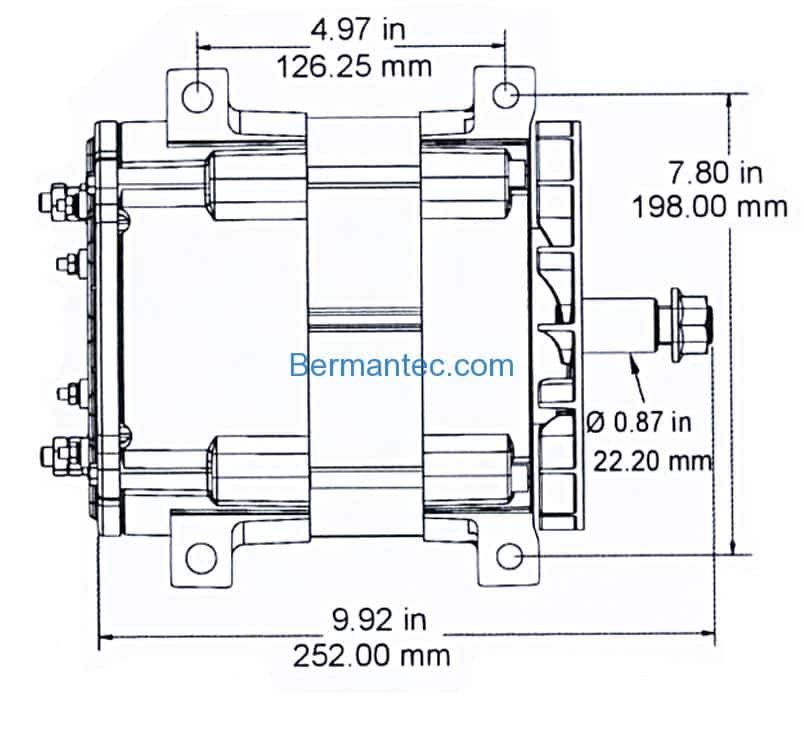

- PAD mount
- Ground: Isolated
- Rotation: Bidirectional
- Temperature Limits: Low -40°C/-40°F, High 125°C/257°F
- RPM limits: 8000 RPM continuous, 9000RPM intermittent
- Corrosion-Resistant E-Coated
- Weight: 38 Lbs./17.4 KG
- Internal Voltage Regulator
- Self-Excited
- Indicator Light
- Remote Sense
- Soft Start Delay (SSD)
- Load Response Control (LRC)
- Field Short Circuit Protection
- Load Dump Protection
- Overvoltage Shut-Down (OSD)
Applications: School & Shuttle buses, Emergency Vehicles, Agricultural & Industrial, Marine & Mining, Utility Vehicles, Construction
Part number: 100-17202 = 24 Volt / 200 Integral regulator / with hair-pin stator
Part number: 100-17203 = 24 Volt / 170 A Integral regulator / with regular stator
Part number: 100-17206 = 24 Volt / 200 A external regulator / with hair-pin stator
Part number: 100-17206D = 24 Volt / 200A / Remote regulator
Part number: 100-17207 = 24 Volt / 170 A / Remote regulator
Part number: 100-17208D = 24 Volt / 240A / Remote regulator
Technical details:

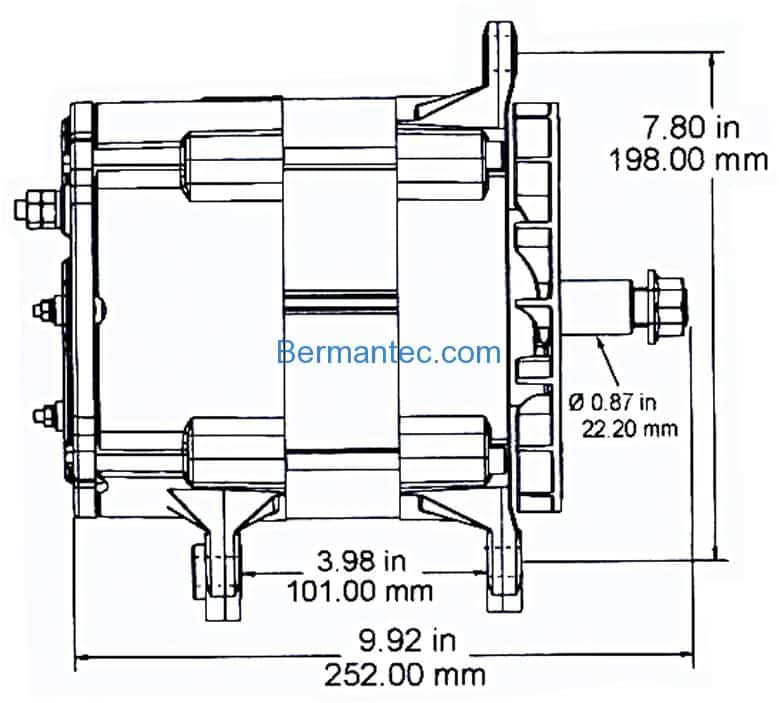

- J-180- dual foot mount
- Insulated ground
- Sense terminal
- R (AC) terminal for tachometer
- Brushless
- D+ terminal (indicator light)
- 22.2mm (7/8”) rotorshaft
Application:
- Firetrucks
- Industrial
- Marine
- Agriculture
- Buses and coaches

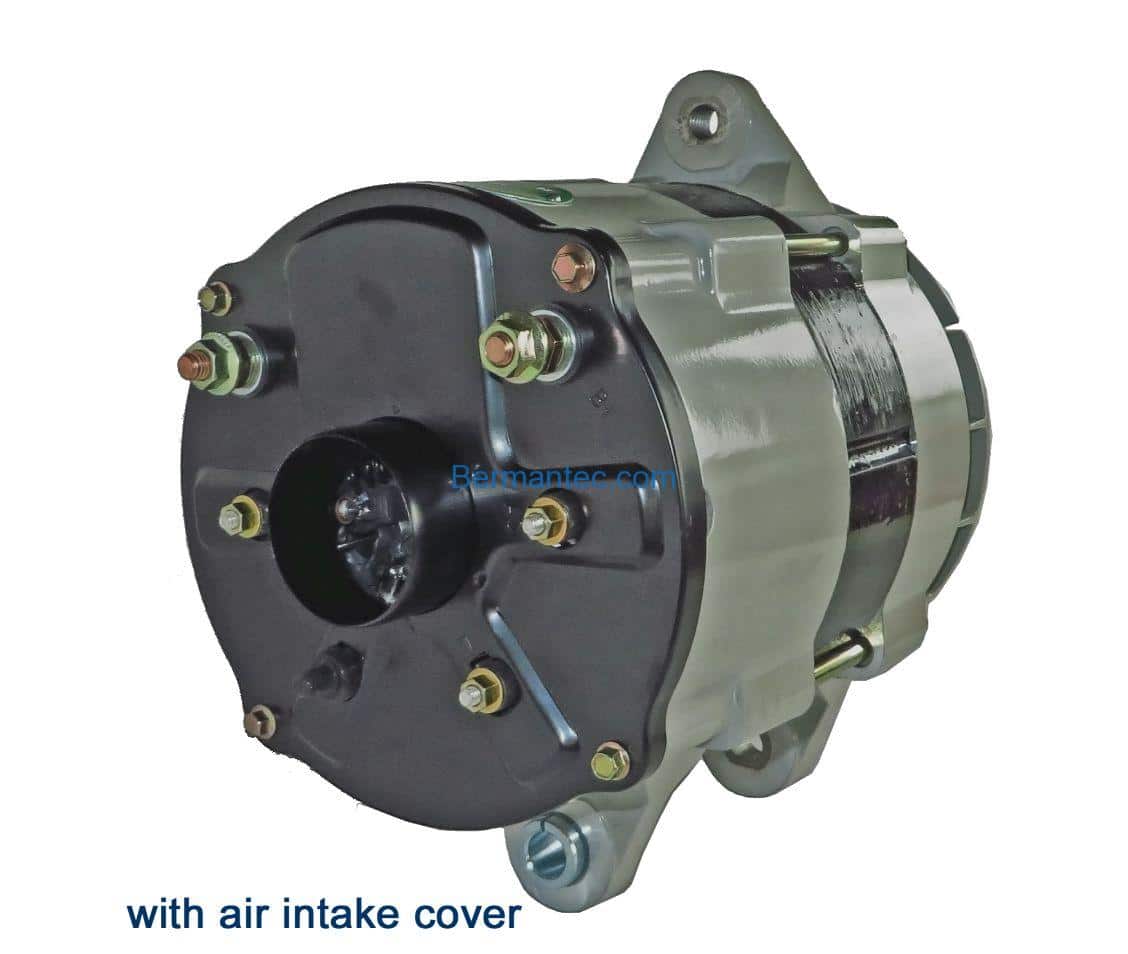

All alternators can be supplied with an optional air intake cover
Part number: 100-17212 = 24 Volt / 200 A built-in regulator / with hair-pin stator
100-17212D = 24 Volt / 200 A built-in regulator
100-17213 = 24 Volt / 170 A built-in regulator
Technical details:

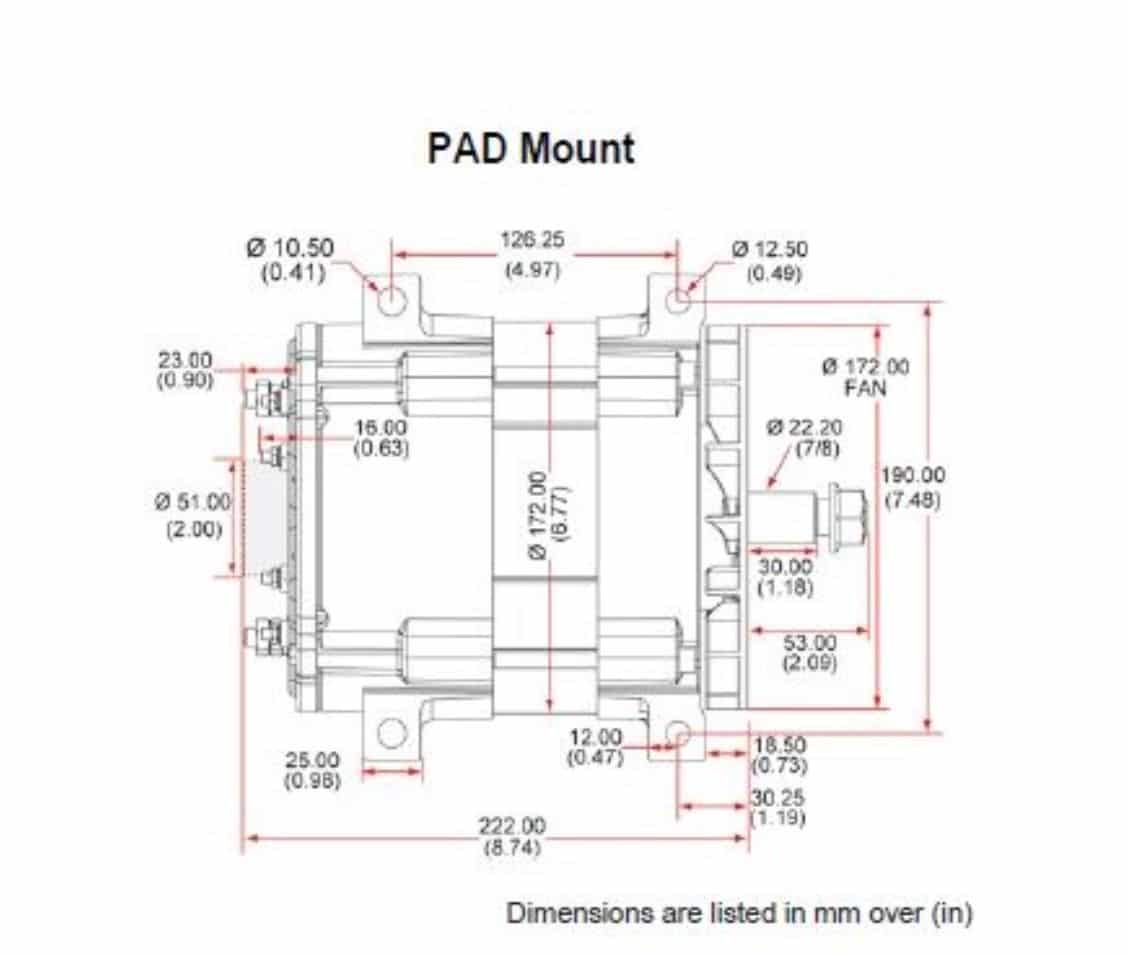

- PAD Mount
- Insulated ground
- Sense terminal
- R (AC) terminal for tachometer
- Brushless
- D+ terminal (indicator light)
- 22.2mm (7/8”) rotorshaft
Applications:
- Firetrucks
- Industrial
- Marine
- Agriculture
- Buses and coaches
All alternators can be supplied with an optional air intake cover
INNOVATIVE FEATURES
• HIGH EFFICIENCY: High efficiency means cooler internal alternators operating temperatures resulting in less engine horsepower required and maximizing fuel savings. Our unique air flow design offers a more efficient air flow through the windings which directly translates In maximum output and efficiencies.
• TEMPERATURE RATING: All our alternators are validated to work and operate In today’s ambient air temperatures of up tot 125°C / 257°F
• DEBRIS FREE & COOLER OPERATION: For high debris or high temperature environments, all DelStar series alternators are available with on optional Air Intake Cover by adding the letter ‘D’ after the part No. the Ducted air allows filtered or fresh air flow to the unit which will Improve output, efficiency and extends the alternator service life.
• SOFT START DELAY (SSD) & LOAD RESPONSE CONTROL (LRC): Again ‘SETTING the STANDARD’ with a newly Introduced SMART REGULATOR where at engine start up, the regulator monitors the (low) engine RPM, it controls and gradually Introduces alternator output to eliminate engine torque decrement due to a sudden and abrupt load transition at low RPM.
• OVERVOLTAGE SHUT-DOWN (0SD): Designed to protect onboard electronics that are very sensitive to high voltage conditions, by shutting down the alternator output and restoring output only when the voltage is stabilized to or below the regulator voltage set point.

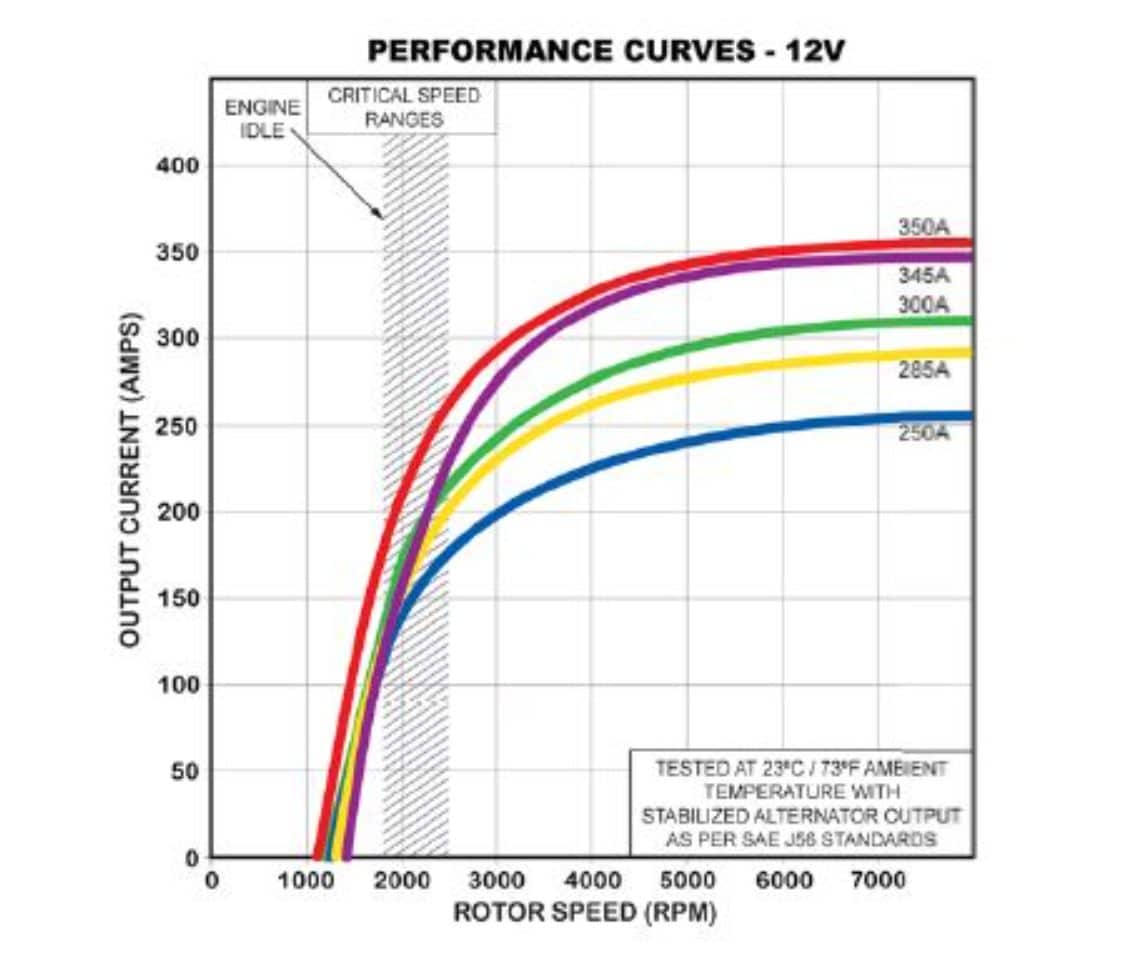

AVAILABLE MODELS: 12V and 24V, from 170 Amps up to 355 Amps.
APPLICATIONS: School & Shuttle Buses, Emergency Vehicles, Utility Vehicles, Marine & Mining, Agricultural & Industrial Construction.
