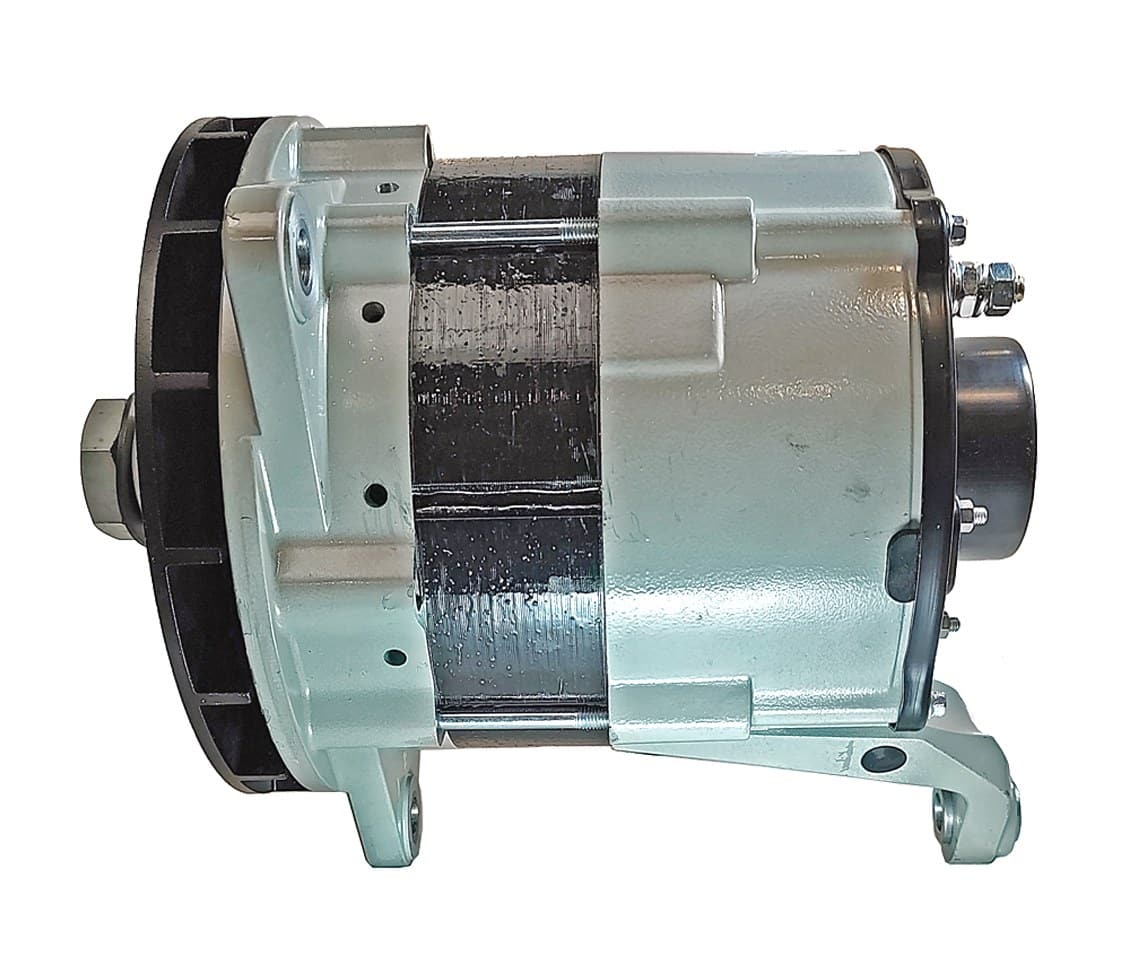

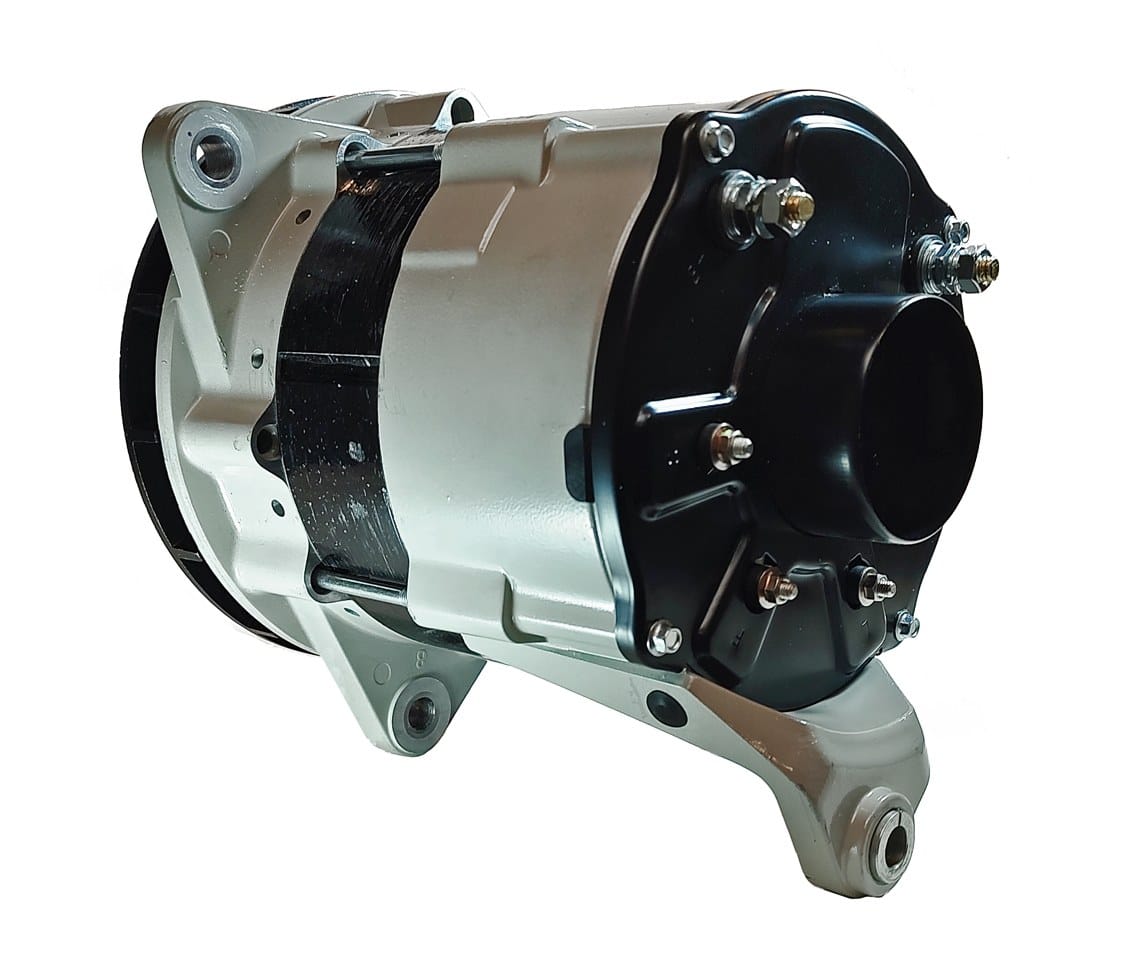

Delstar alternator 24V/250A T1 mount OEM 100-18262E

DelStar, 24 Volt, 250A, Insulated, Brushless, 180-Series, High-output, Coach, Transit, Buses, High-efficiency, Emergency vehicles, Agricultural, Industrial, Construction, T1, T1 mount, right mounting. Uses a seperate regulator.

Technical Data

Attachments

SKU:33675 Category: DELSTAR 180 SERIES 24 VOLT - T1 MOUNT Tags: CONSTRUCTION ALTERNATORS, MAN, MARINE COLLECTION, TRAIN APPLICATION Brand: Delstar

In stock

Request quotation and delivery time

References and Description
Additional Information

Reference number	Berman: 100-18262E Delstar: 100-18262E Separate regulator, 3501-5025. Regulator must be ordered separately 100-18227, 10018227, 0120689527, 0120689541, 0120689567, 0120689517, 0120689540, 0120689507, 0120689546, 0-120-689-527, 0-120-689-541, 0-120-689-567, 0-120-689-517, 0-120-689-536, 0-120-689-544, 0-120-689-554, 0-120-689-589, 0-120-689-536, 0120689544, 0120689554, 0120689589
Description	To be used with regulator: 3501-5025 Alternator needs external regulator p-type. Example: Delco Remy 50VR (+Berman 3501-5025). The external regulator does not have any light terminal tab and does not require any light terminal connection coming from the alternator side . Again, the alternator L light terminal is not needed for the external regulator connection. The alternator light terminal is L “run” type (active). It is not an “indicator light” output terminal. The L run terminal is coming trough the rectifier trio diodes. L run output voltage is like the B+ output voltage which is approx. 28Volt. The max amperage of the alternator L run terminal is 10 Amps. When doing the external regulator connection, please ignore the alternator L run terminal !

Reference number

Berman: 100-18262E Delstar: 100-18262E Separate regulator, 3501-5025. Regulator must be ordered separately 100-18227, 10018227, 0120689527, 0120689541, 0120689567, 0120689517, 0120689540, 0120689507, 0120689546, 0-120-689-527, 0-120-689-541, 0-120-689-567, 0-120-689-517, 0-120-689-536, 0-120-689-544, 0-120-689-554, 0-120-689-589, 0-120-689-536, 0120689544, 0120689554, 0120689589

Description

To be used with regulator: 3501-5025

Alternator needs external regulator p-type. Example: Delco Remy 50VR (+Berman 3501-5025).
The external regulator does not have any light terminal tab and does not require any light terminal connection coming from the alternator side .

Again, the alternator L light terminal is not needed for the external regulator connection. The alternator light terminal is L “run” type (active). It is not an “indicator light” output terminal.
The L run terminal is coming trough the rectifier trio diodes. L run output voltage is like the B+ output voltage which is approx. 28Volt.
The max amperage of the alternator L run terminal is 10 Amps.
When doing the external regulator connection, please ignore the alternator L run terminal !
