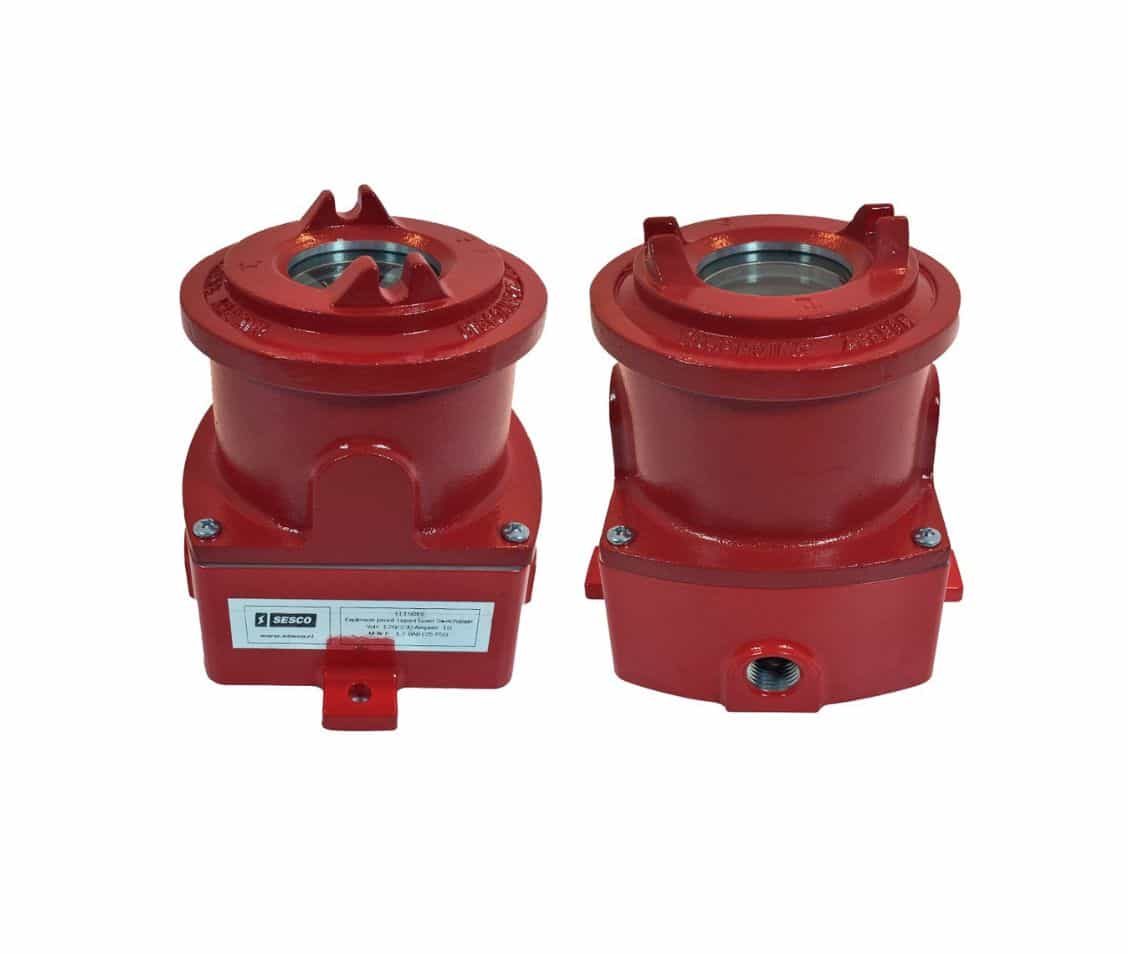

Murphy EL150EX Level Switch

878.00 (excl. VAT)

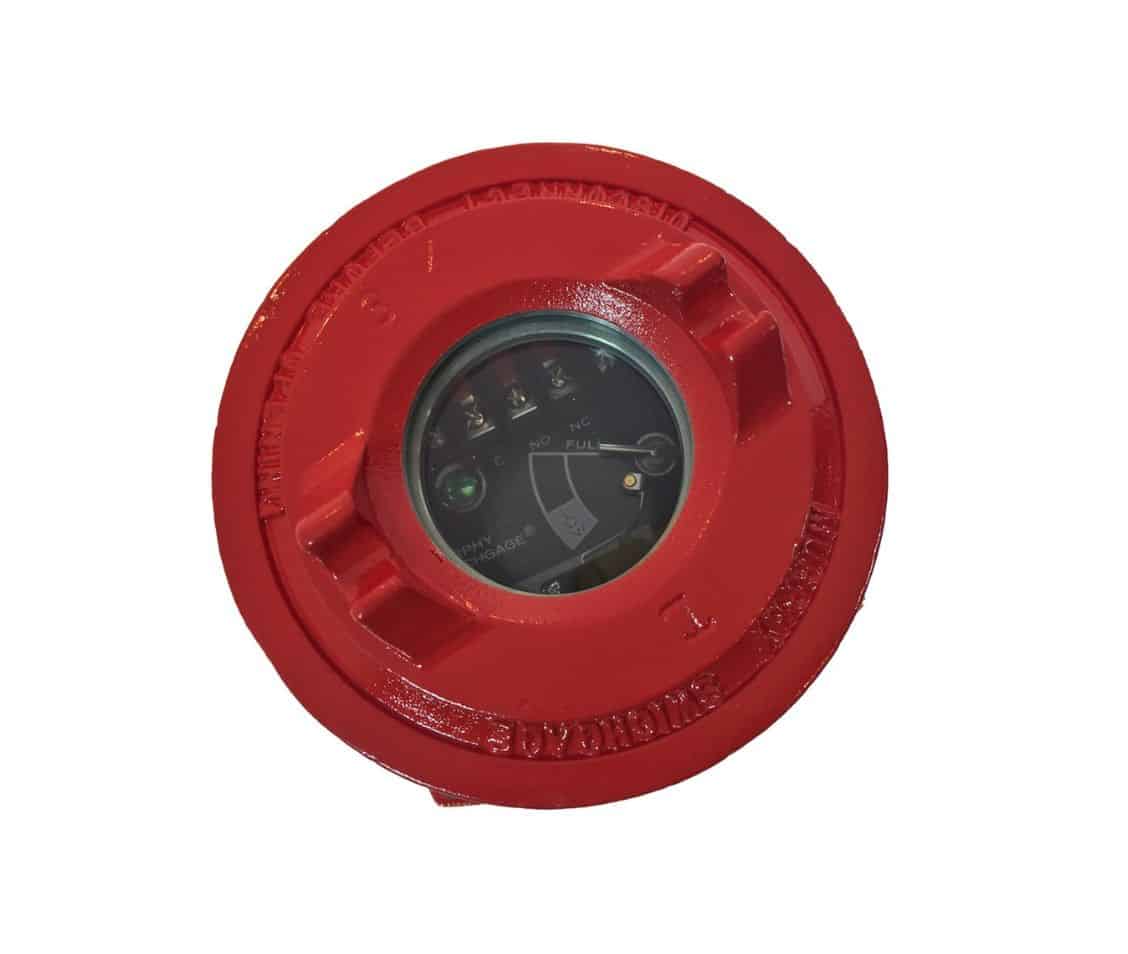

Indicating Gauge.

  • Low Limit Switch.
  • Float Operated
  • Technical Data

Murphy SKU:ex-11606 Category: Tags: , Brand:

Available on backorder

Description

    • Maximum Temperature: 250° F (121° C)
    • Maximum Operating Pressure: 25 PSI (172 kPa)
    • Case: Sand cast aluminum, painted; approximate dimensions: 6-1/2 x 5-3/4 x 5-1/4 in. (165 x 146 x133 mm)
    • Mounting Holes: (2) 5/16 in. (8 mm) diameter at 5-1/2 in. (140 mm) on center
    • Float: 304 Stainless steel
    • Lens: Tempered glass
    • O-rings: Saturated Nitrile, suitable for coolant or hydrocarbons
    • Gasket: Nitrile
    • Vent Tube: 1/4 x 5 in. (6 x 127 mm) copper cane with 1/4 NPT x 1/4 in. (6 mm) tube fitting and 1/2 NPT to 1/4 NPT reducer fitting
    • Snap-Switch: SPDT rated 10 A @ 125 VAC; 0.5 A @ 125 VDC; 10 A 30 VDC
    • Wire: Wired to terminal block
    • Laboratory Approvals: CSA Listed for Hazardous Locations Class I, Division 1, Groups C & D
    • Shipping Dimensions: 6-1/2 x 6-3/4 x 6-3/8 in. (165 x 171 x 162 mm)

Additional information

Weight2.7 kg
